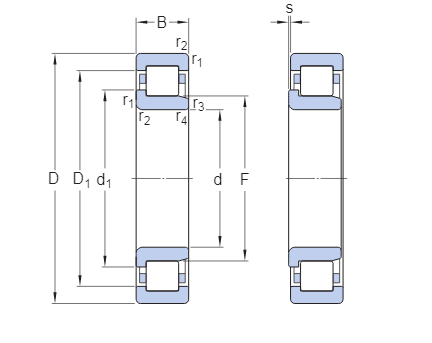

      Dimensions
Bore diameter120 mm
Outside diameter215 mm
Width40 mm

d 4.7244 in
Bore diameter
D 8.4646 in
Outside diameter
B 1.5748 in
Width
d1
≈6.0236 in
Shoulder diameter of inner ring
D1
≈7.3555 in
Shoulder diameter of outer ring

F 5.6496 in

Raceway diameter of inner ring
r1,2
min.0.0827 in
Chamfer dimension
r3,4
min.0.0827 in
Chamfer dimension
s
max.0.0748 in
Permissible axial displacement
Abutment dimensions - NJ 224 ECP
Abutment dimensions
da
min.5.1969 in
Diameter of spacer sleeve
da
max.5.5118 in
Diameter of spacer sleeve
db
min.6.1417 in
Diameter of shaft abutment
Da
max.7.937 in
Diameter of housing abutment
ra
max.0.0787 in

Radius of fillet
