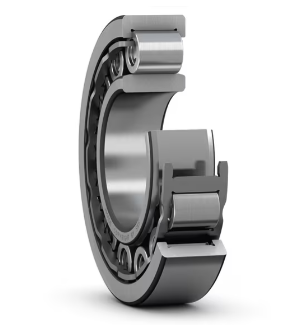

SKF NU 2209 ECJ Bearings wholesale price | On sale

                                                                                    INQUIRY

      Dimensions
Bore diameter 45 mm
Outside diameter 85 mm
Width 23 mm

Product net weight 0.541 kg


Basic dynamic load rating85 kN
Basic static load rating81.5 kN
Reference speed9 000 r/min
Limiting speed9 500 r/min
SKF performance classSKF Explorer

d
45 mm Bore diameter
D
85 mm Outside diameter
B
23 mm Width
D1
≈72.47 mm Shoulder diameter of outer ring
F
54.5 mm Raceway diameter of inner ring
r1,2
min.1.1 mm Chamfer dimension
r3,4
min.1.1 mm Chamfer dimension
s
max.1.7 mm Permissible axial displacement



INQUIRY sales@hellerbearings.com
  • Details: SKF NU 2209 ECJ Bearings wholesale price | On sale

  • Like Model No.:

  • We cooperate with UPS,TNT,FEDEX,EMS,DHL,etc.They guarantee to meet your needs in terms of time and money,even if you need your SKF NU 2209 ECJ Bearings wholesale price | On sale bearing tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide. INQUIRY -->
