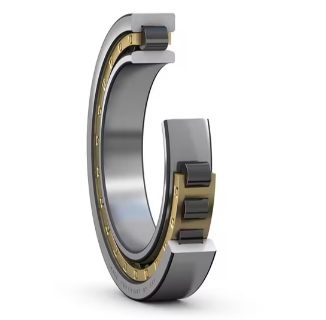

SKF NU 210 ECM/C3HVA3091 Bearings wholesale price | On sale

                                                                                    INQUIRY

      Dimensions
Bore diameter 50 mm
Outside diameter 90 mm
Width 20 mm

Product net weight 0.551 kg

Basic dynamic load rating 73.5 kN
Basic static load rating 69.5 kN
Reference speed 8 500 r/min
Limiting speed 9 000 r/min

d
50 mm Bore diameter
D
90 mm Outside diameter
B
20 mm Width
D1
≈78 mm Shoulder diameter outer ring
F
59.5 mm Raceway diameter inner ring
s
max.1.5 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
min.1.1 mm Chamfer dimension
r3,4
min.1.1 mm Chamfer dimension


INQUIRY sales@hellerbearings.com
  • Details： SKF NU 210 ECM/C3HVA3091 Bearings wholesale price | On sale

  • Like Model No.:

  • We cooperate with UPS,TNT,FEDEX,EMS,DHL,etc.They guarantee to meet your needs in terms of time and money,even if you need your SKF NU 210 ECM/C3HVA3091 Bearings wholesale price | On sale bearing tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide. INQUIRY -->
