NSK QJ307 Bearings wholesale price | On sale

                                                                                    INQUIRY

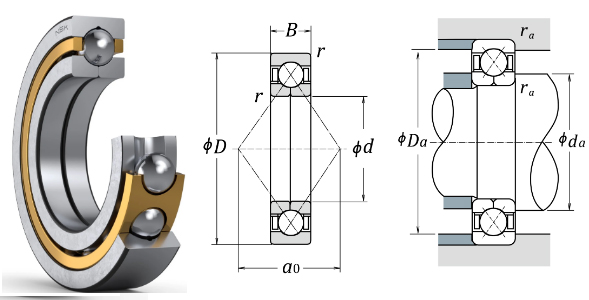

Boundary Dimensions
d 35 mm Bore diameter
D 80 mm Outside diameter
B 21 mm Width
r (min.) 1.5 mm Chamfer dimension
Basic Load Ratings
Ca 60500 N Basic dynamic load rating
C0a 80000 N Basic static load rating
Speeds
Grease 7100 min-1 Grease lubrication
Oil (Oil-bath) 9500 min-1 Oil-bath lubrication
Dimensions
a0 40.3 mm Load center spacings
Abutment and Fillet Dimensions
da (min.) 44 mm Diameter of shaft abutment
Da (max.) 71 mm Diameter of housing abutment
ra (max.) 1.5 mm Radius of shaft or housing fillet
Mass
(approx.) 0.57 kg
