NSK QJ212 bearing Bearings wholesale price | On sale

                                                                                    INQUIRY

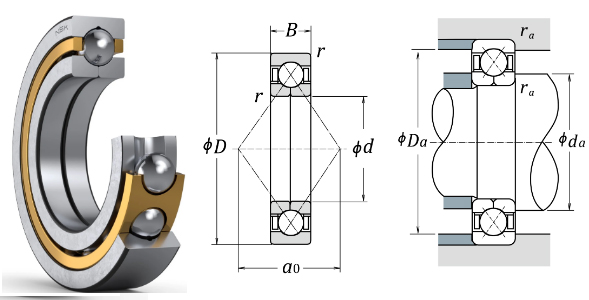

Boundary Dimensions
d 60 mm Bore diameter
D 110 mm Outside diameter
B 22 mm Width
r (min.) 1.5 mm Chamfer dimension
Basic Load Ratings
Ca 94000 N Basic dynamic load rating
C0a 150000 N Basic static load rating
Speeds
Grease 4800 min-1 Grease lubrication
Oil (Oil-bath) 6300 min-1 Oil-bath lubrication
Dimensions
a0 59.5 mm Load center spacings
Abutment and Fillet Dimensions
da (min.) 69 mm Diameter of shaft abutment
Da (max.) 101 mm Diameter of housing abutment
ra (max.) 1.5 mm Radius of shaft or housing fillet
Mass
(approx.) 0.98 kg
